How to create radio buttons in Excel with checkboxes

Data validation is a fantastic feature in Excel that makes your spreadsheets easy to use and hard to break by controlling what data can be entered—like limiting cells to numbers, dates, or dropdowns. But in the past, adding any kind of visual component, even something as simple as a checkbox, was pretty cumbersome, often needing tricky workarounds or extra coding. Now it’s a breeze with Excel’s built-in checkbox feature.

In this post, we’ll look at creating a radio button-type control using these native checkboxes in Excel, all through the power of conditional logic. You can follow along with the exercise file below:

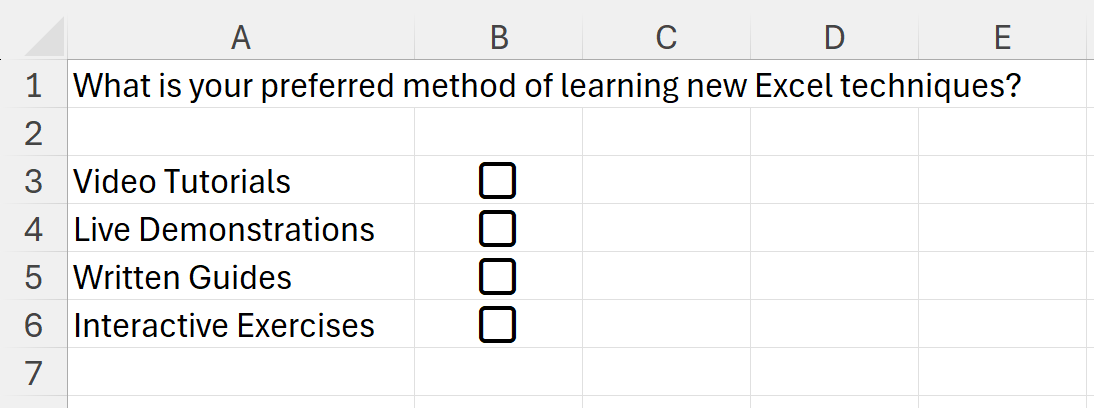

Here’s a concise series of checkboxes prompting the user to choose their preferred method for Excel techniques. These checkboxes were added using the ribbon under Insert > Checkbox:

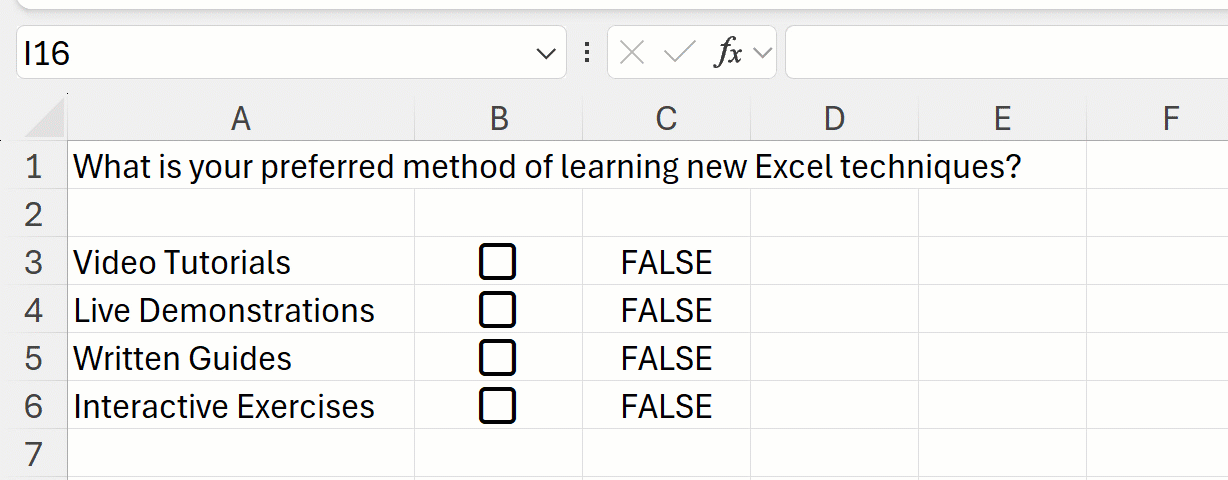

Checking these boxes on or off is quite convenient on the frontend, but something intriguing occurs on the backend. By linking formula references to these checkboxes, you’ll notice they toggle between TRUE and FALSE states. We can leverage this feature to create a data validation rule that limits the number of boxes checked at once.

To configure this data validation, you can remove the formula references since they’re no longer needed. Instead, select your range of checkboxes, then navigate to the ribbon and click Data > Data Validation:

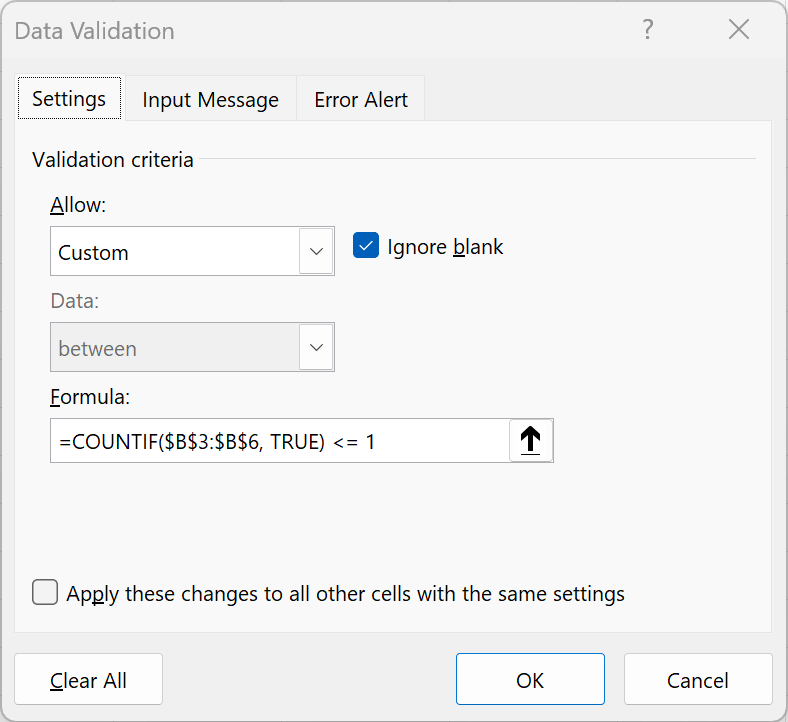

From the dropdown, choose Custom and use COUNTIF() to tally the TRUE values in the range, ensuring the count is less than or equal to one.

We can’t set it to exactly one because unchecking a box is required before checking another, so we must also permit a count of zero. While this isn’t as ideal as a true radio button, it remains far more practical:

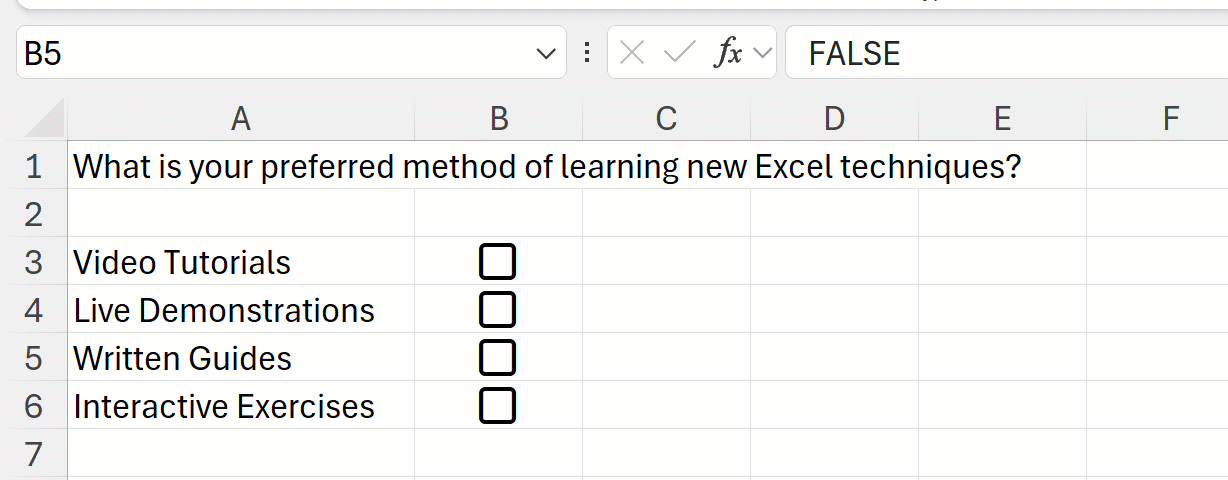

With this setup, data validation restricts us to selecting just one box. Attempting to check another will be blocked automatically.

Sure, this setup isn’t exactly a true radiobutton—after all, the checkboxes aren’t circular, and you can technically leave them all unchecked instead of having one always selected—but it’s still pretty awesome to have this functionality built right into Excel without needing macros, form controls, or anything fancy. How do you see yourself using this in your own projects, or what questions do you have about working with checkboxes in Excel? Drop your thoughts in the comments below!
